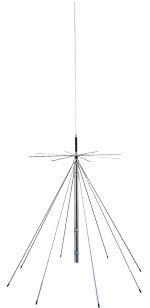

D3000N Super Discone Antenna
The D3000N Super Discone Antenna is an ultra-wideband antenna covering amateur radio, commercial 2-way, cellular, air traffic control and various utility frequency bands. Rust-free stainless steel is employed in major component parts making the antenna rust resistant and durable.
Special Features:• Ultra-wideband
design 25 to 3000 MHz receive, 50-1200 MHz transmit (6m tunable
for transmit)
• Compact
and lightweight design enables antenna to be installed on balcony
railing at an apartment or condominium
• Ideal
for 2m, 1-1/4m, 70cm, 33cm and 23cm amateur bands
• Excellent "shop" antenna for testing various transmitters on a
single coax
• Can
be made further compact and lightweight by removing the top loading
coil if 25-50 MHz reception is not required
Bands: 25-3000 MHz Gain dBi: 2 (nominal) Max Power Rating: 144 MHz up: 200 watts
6m: 20 watts FM, 50 watts PEP Height: 67" Connector: Type-N Element Phasing: Wideband Discone
Remarks: Adjustable 50-54 MHz
