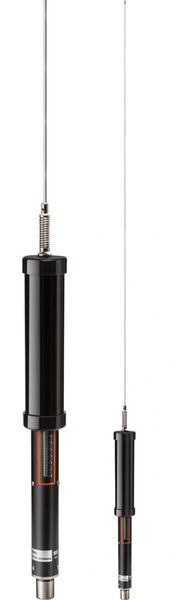

Diamond SD330 Screwdriver HF Antenna

Diamond SD330 Screwdriver HF Antenna

Bands: 3.5 - 30MHz Power Supply voltage & current: DC 12v 100mA Max Power Rating: 200W (SSB) Height: Approx. 66" (28 MHz)
Approx. 73" (3.5 MHz)
Weight: 1.1kg Connector: UHF Type: 1/4l center loading VSWR: Less than 2.0 / Impedance: 50Ω Up-down time: Approx. 50 sec. (3.5-30Mhz )
Approx 20 sec. (7-30MHz)
NOTE: The SD330 uses the car body for its ground. The bracket and the car body need to be well grounded.
Comes with OPE750 for tuning 7-50MHz.

This item is out of stock
